| *No. |
*ITEM |
*MATERAIL |
*O'TY |
|
|
|
**1 |
*BODY |
*SCS13,
CF8 |
1 |
|
**2 |
*BONNET |
*SCS13,
CF8 |
1 |
|
**3 |
*BALL |
*SCS13,
CF8 |
1 |
|
**4 |
*STEM |
*SUS304 |
1 |
|
**5 |
*STEM-RING
|
*TEFLON |
1 |
|
**6 |
*WASHER |
*TEFLON |
1 |
|
**7 |
*GRAND
PACKING |
*TEFLON |
ISET |
|
**8 |
*STEM
SEAL |
*TEFLON04 |
1 |
|
**9 |
*SPRING
WASHER |
*SUS304 |
1 |
|
*10 |
*HANDLE |
*SUS304 |
1 |
|
*11 |
*LOCK
NUT |
*SUS304 |
1 |
|
*12 |
*HEX
NUT |
*SUS304 |
1 |
|
|
| |

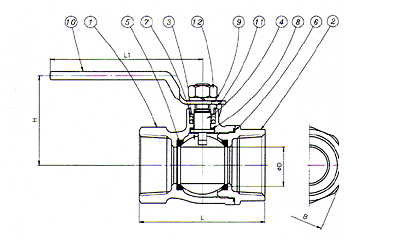

| DIMENSIONS |
(mm)
|
| |
| SIZE
|
￠D |
L |
L1 |
B |
H |
| 8⁴ |
¼³ |
10 |
53 |
86 |
21.5 |
44 |
| 10⁴ |
¾³ |
10 |
53 |
86 |
21.5 |
44 |
|
15⁴ |
½³ |
10 |
58 |
86 |
26 |
46 |
|
20⁴ |
¾³ |
15 |
64 |
101 |
31 |
52 |
|
25⁴ |
1³ |
20 |
79 |
101 |
40 |
58 |
|
30⁴ |
1¼³ |
25 |
86 |
101 |
49 |
63 |
|
40⁴ |
1½³ |
32 |
97 |
147 |
55 |
68 |
|
50⁴ |
2³ |
40 |
113 |
147 |
69 |
78 |
|
65⁴ |
2½³ |
50 |
153 |
189 |
86 |
99 |
|
80⁴ |
3³ |
65 |
170 |
189 |
100 |
109 |
|
|
| |
|
