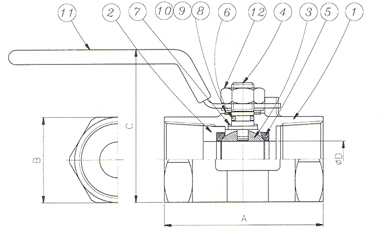

| *No. |
*ITEM |
*MATERAIL |
*O'TY |
|
|
|
**1 |
*BODY |
*SCS13,
CF8 |
1 |
|
**2 |
*CAP |
*SCS13,
CF8 |
1 |
|
**3 |
*BALL |
*SCS13,
CF8 |
1 |
|
**4 |
*STEM |
*SUS304 |
1 |
|
**5 |
*STEM-RING
|
*TEFLON |
2 |
|
**6 |
*O-RING |
*N.B.R |
1 |
|
**7 |
*STEM SEAL |
*GRAPHITE |
1 |
|
**8 |
*GLAND PACKING |
*GRAPHITE |
1 |
|
**9 |
*GLAND |
*SUS304 |
1 |
|
*10 |
*CON' WASHER |
*SUS304 |
1 |
|
*11 |
*HANDLE |
*SUS304 |
1 |
|
*12 |
*NUT |
*SUS304 |
1 |
|
|
| |
| DIMENSIONS |
(mm)
|
| |
| SIZE
|
A |
B |
C |
￠D |
| 8⁴ |
¼³ |
39 |
17 |
42 |
5 |
| 10⁴ |
¾³ |
44 |
21 |
47 |
7 |
|
15⁴ |
½³ |
57 |
25 |
52 |
9.2 |
|
20⁴ |
¾³ |
59 |
32 |
58 |
12.5 |
|
25⁴ |
1³ |
71 |
38 |
66 |
16 |
|
30⁴ |
1¼³ |
78 |
49 |
76 |
20 |
|
40⁴ |
1½³ |
83 |
53 |
81 |
24.5 |
|
50⁴ |
2³ |
100 |
65 |
93 |
32 |
|
|
| |
|
